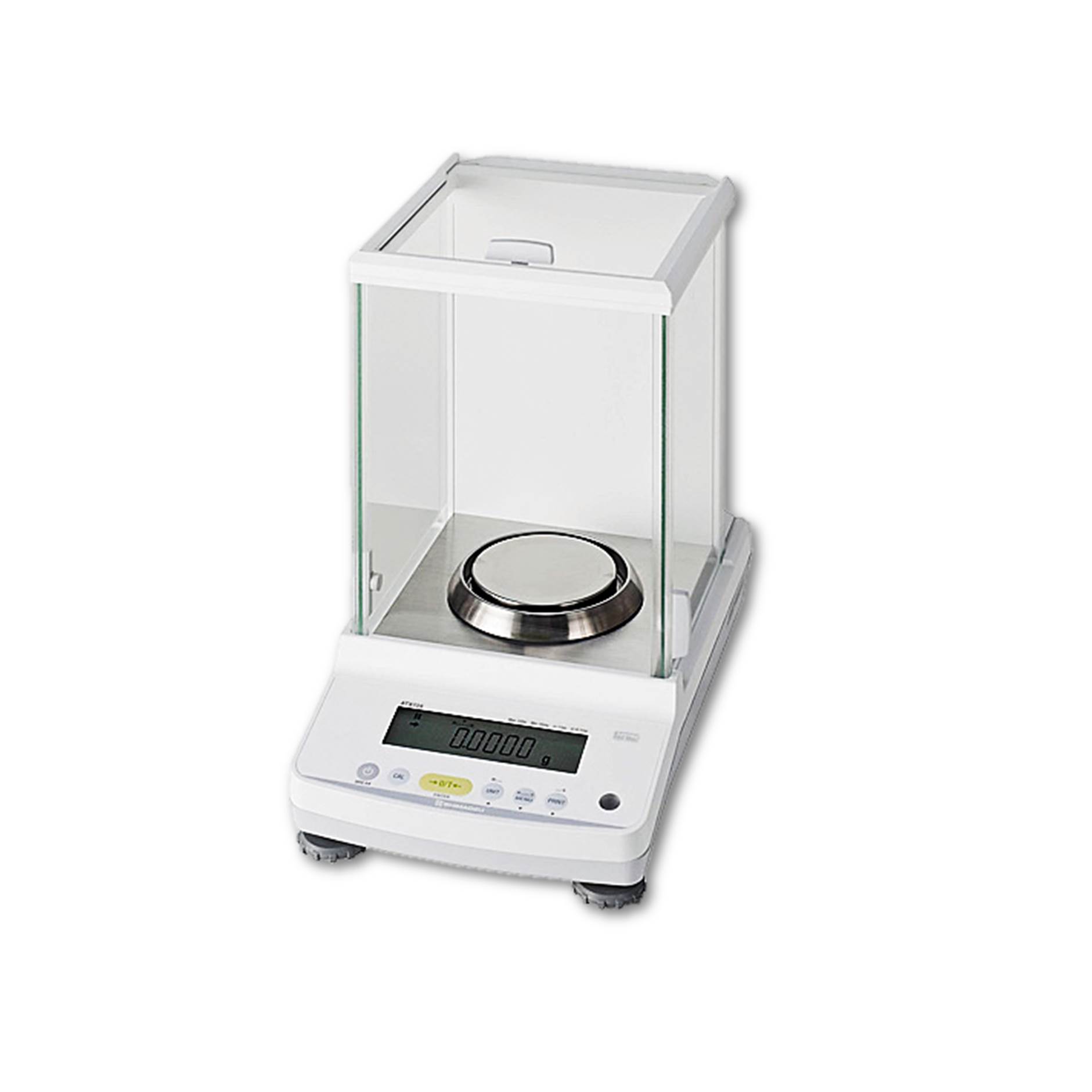

Shimadzu (ATY & ATX series) Analytical Balance

Features :~

Touch-key calibration

Automated calibration can be started by pressing keys. (ATX series)

Also, your external calibration weights can be used for span calibration (all models).

Easy setting - Best fit for weighing application

Quickly adjust the desired ratio of stability and response for every application, even during measurement, with one-touch operation.

Expanded Piece Counting function

Unit weights of up to 5 different samples can be easily entered, stored and recalled for use.

Comparator function

Compare samples to target values or pass/fail criteria; results are clearly indicated.

Formulation mode

Convenient for making many measurements of minute samples and seeking the total mass.

Windows Direct Communication Function

Send balance data to Excel® or other Windows® applications without installing any data communication software. By combining standard Auto Print functions with typical spreadsheet functions, even difficult applications can be easily automated. *RS232C interface is needed.

DescriptionDownload
Model:   ATX84
  • Capacity:   82g
  • Minimum Display:   0.1mg
  • Pan size(mm) approx.:   ∅91
  • Main body dimensions (mm) approx.:   213 x 356 x 338
  • Weighr(kg) approx.: 6.2
  • Power Requirement:   12V,1A
  • Internal Calibration:   Yes
Model:   ATX124
  • Capacity:   120g
  • Minimum Display:   0.1mg
  • Pan size(mm) approx.:   ∅91
  • Main body dimensions (mm) approx.:   213 x 356 x 338
  • Weighr(kg) approx.: 6.2
  • Power Requirement:   12V,1A
  • Internal Calibration:   Yes
Model:   ATX224
  • Capacity:   220g
  • Minimum Display:   0.1mg
  • Pan size(mm) approx.:   ∅91
  • Main body dimensions (mm) approx.:   213 x 356 x 338
  • Weighr(kg) approx.: 6.2
  • Power Requirement:   12V,1A
  • Internal Calibration:   Yes
Model:   ATX224
  • Capacity:   220g
  • Minimum Display:   0.1mg
  • Pan size(mm) approx.:   ∅91
  • Main body dimensions (mm) approx.:   213 x 356 x 338
  • Weighr(kg) approx.: 6
  • Power Requirement:   12V,1A
  • Internal Calibration:   No
Model:   ATY64
  • Capacity:   62g
  • Minimum Display:   0.1mg
  • Pan size(mm) approx.:   ∅91
  • Main body dimensions (mm) approx.:   213 x 356 x 338
  • Weighr(kg) approx.: 6
  • Power Requirement:   12V,1A
  • Internal Calibration:   No
Model:   ATY124
  • Capacity:   120g
  • Minimum Display:   0.1mg
  • Pan size(mm) approx.:   ∅91
  • Main body dimensions (mm) approx.:   213 x 356 x 338
  • Weighr(kg) approx.: 6
  • Power Requirement:   12V,1A
  • Internal Calibration:   No
Model:   ATY224
  • Capacity:   220g
  • Minimum Display:   0.1mg
  • Pan size(mm) approx.:   ∅91
  • Main body dimensions (mm) approx.:   213 x 356 x 338
  • Weighr(kg) approx.: 6
  • Power Requirement:   12V,1A
  • Internal Calibration:   No
