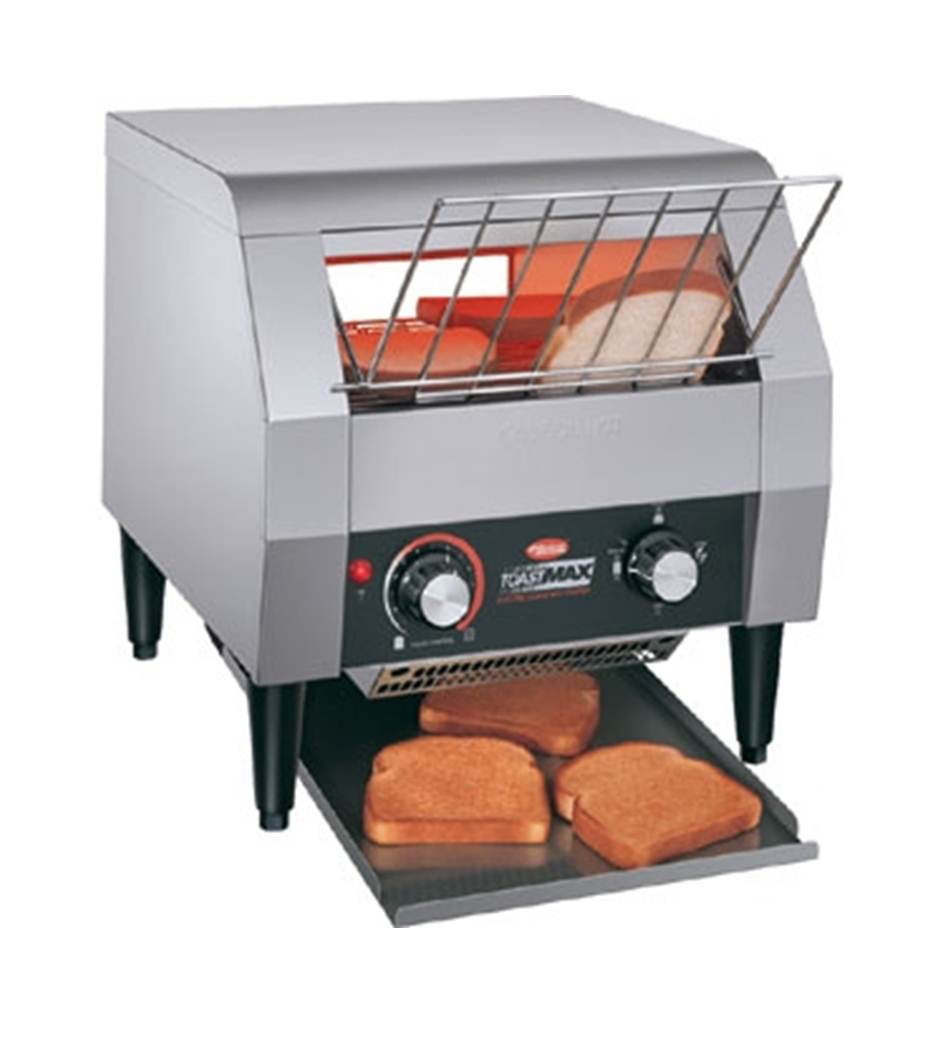

(HTM) Conveyor Toaster

The economy conveyor toaster offers the flexibility and performance to perfectly toast bread and buns fast – up to 300 slices per hour! Utilizing conveyor speed , not temperature, to determine toasting color, allows for instant adjustment of toasting time.

  • 4 – position toast selector switch: Off / toast / buns / stand-by mode
  • 89 mm (3-1/2”) clearance to accommodate high profile bread products
  • Easy-to-load rack with front or rear discharging
  • Permanently lubricated 50/60 Hz motor
  • V-shaped reflectors help capture and redirect heat
  • Long lasting serpentine metal sheathed heating elements
  • 102 mm (4”) adjustable legs
  • Pilot light signals that units is in operation
  • Discharge and crumb trays are removable for easy cleaning
DescriptionDownload
Model:    HTM-5H
  • Dimensions:   289 W X 416 D X 387 H
  • Interior Cavity Openings:    187 W X 89 H
  • Maximum  Product Size:   245 W X 64 H (mm)
  • Volts:   220-240
  • Watts:   1340-1595
  • Chord Location:   Left side of back of unit near center.
  Model:   HTM-10H
  • Dimensions:     368 W X 416 D X 387 H
  • Interior Cavity Openings:   264 W X 89 H
  • Maximum  Product Size:   245 W X 64 H (mm)
  • Volts:   220-240
  • Watts:   1940-2300
  • Chord Location:   Left side of back of unit near center.
