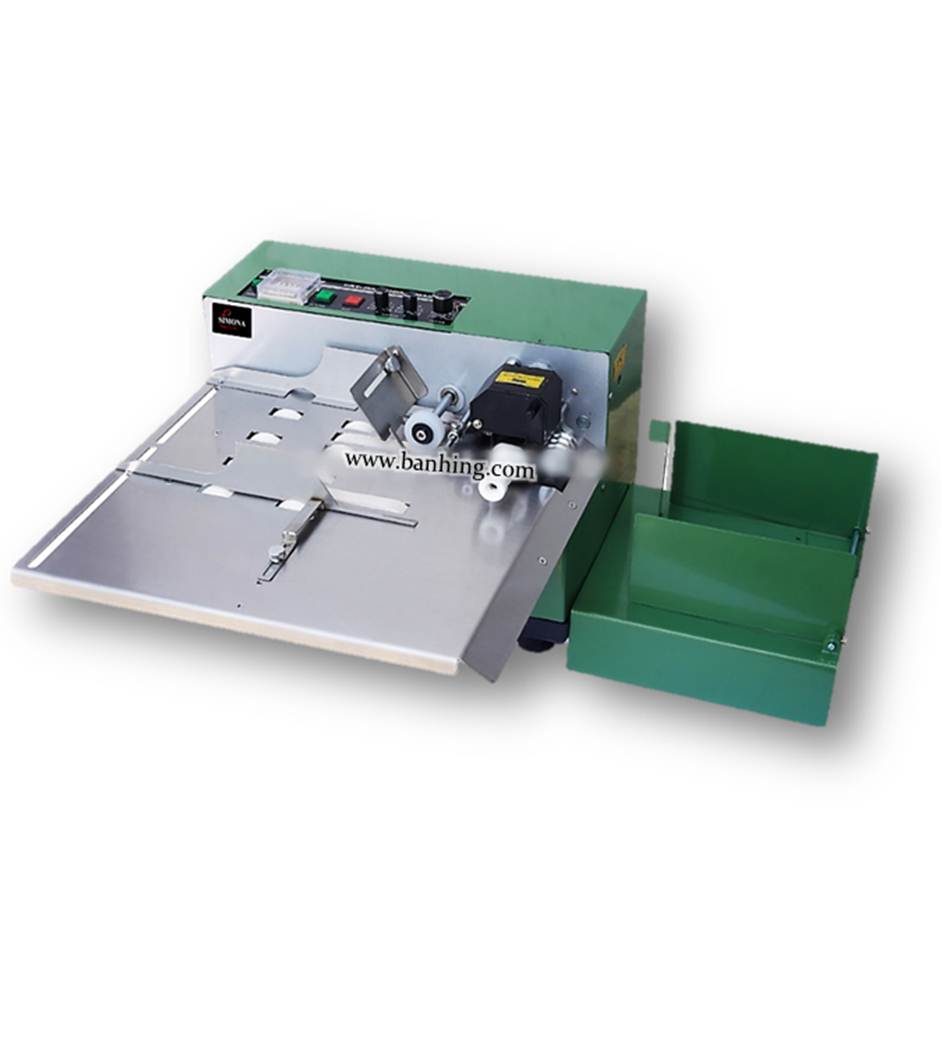

(MY380F) Solid Ink roll Coding Machine

MY-380F
This is use for printing labels on paper, thin cardboard, plastic film and aluminum foil. Adopt solid-ink coding, characterized by high definition, instant printing & instant dry, various colors can be selected with strong adhesion.

Characteristic

  • Adopt photoelectric mechanism technology, automatic temperature control, auto counting, adjustable print position.
  • The printing roller equipped to the machine can be used for both R arrange and T arrange types. For T arrange type, the machine can print 1-10 lines with 1-10 characters in each line, and for types in R arrange, the machine can print 1-8 lines with 1-8 characters in each line. Types in various sizes such as 2mm, 2.5mm, 3mm are available as option.
  • Works efficiently and automatically at high speed, up to 30pcs per minute.

Optional

  • Add width on work platform
  • Stainless steel body
  • Stainless steel body + width platform
DescriptionDownload
Model:    MY-380F
  • Voltage (V/Hz):   AC 220/50 110/60
  • Power(W):    180
  • Solid ink roller:      35×32 (mm) / 35×16 (mm)
  • Printing speed:       ≤300(pcs/min)
  • Object size:        L:50-500  W:30-190 (mm)
  • Max. Printing Line:       T Type(10.5PT):11Lines(Max.10 Type/Line) R Type(10.5PT):8Lines(Max.8 Type/Line)
  • Printing size (mm):      within 60~250
  • Type size (mm):      2×1.5(8PT)  2×2.5(9PT)  3×3(10.5PT)  4×2.5(18PT)
  • Dimension(L×W×H):       440×345×300(mm)
  • Net weight :       25(Kg)
