Home/Food & Beverage Machineries/Ice Processing & Refrigeration Equipment/Freezer/(SC Series) Chest Freezer
BACK TO Ice Processing & Refrigeration Equipment

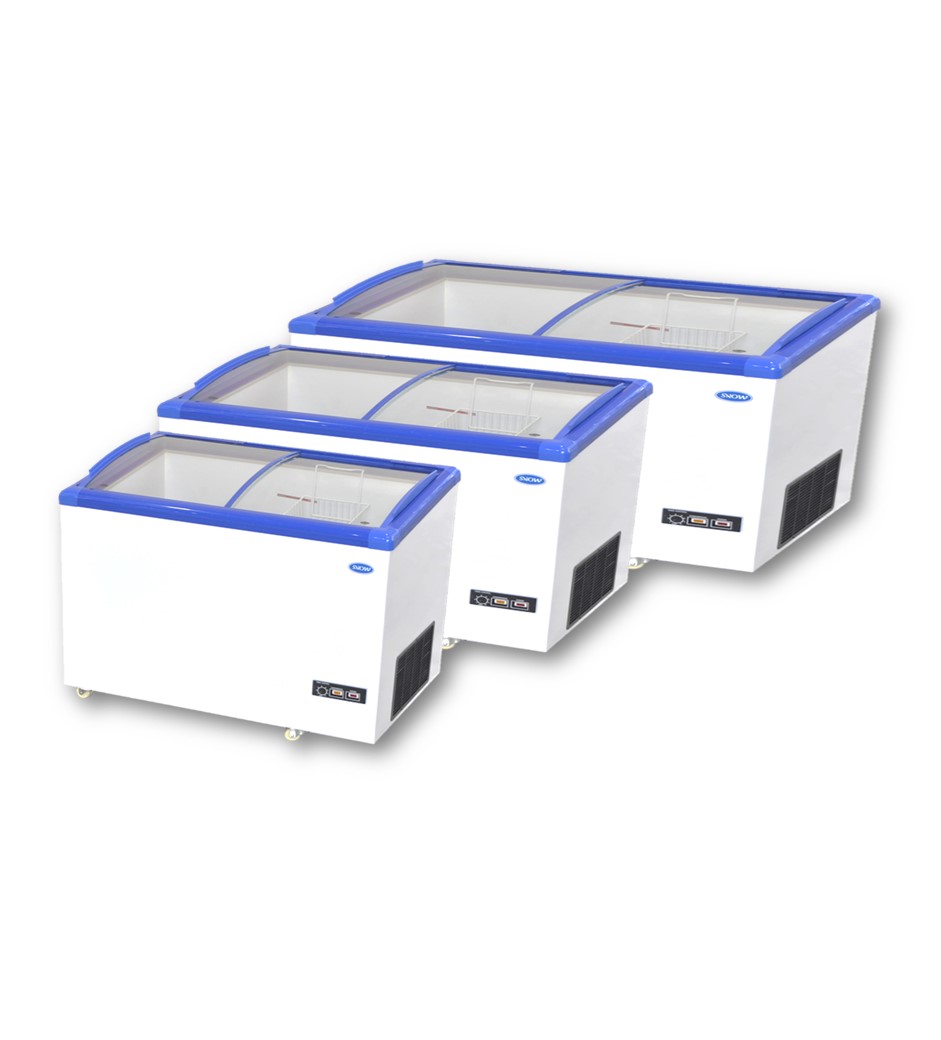

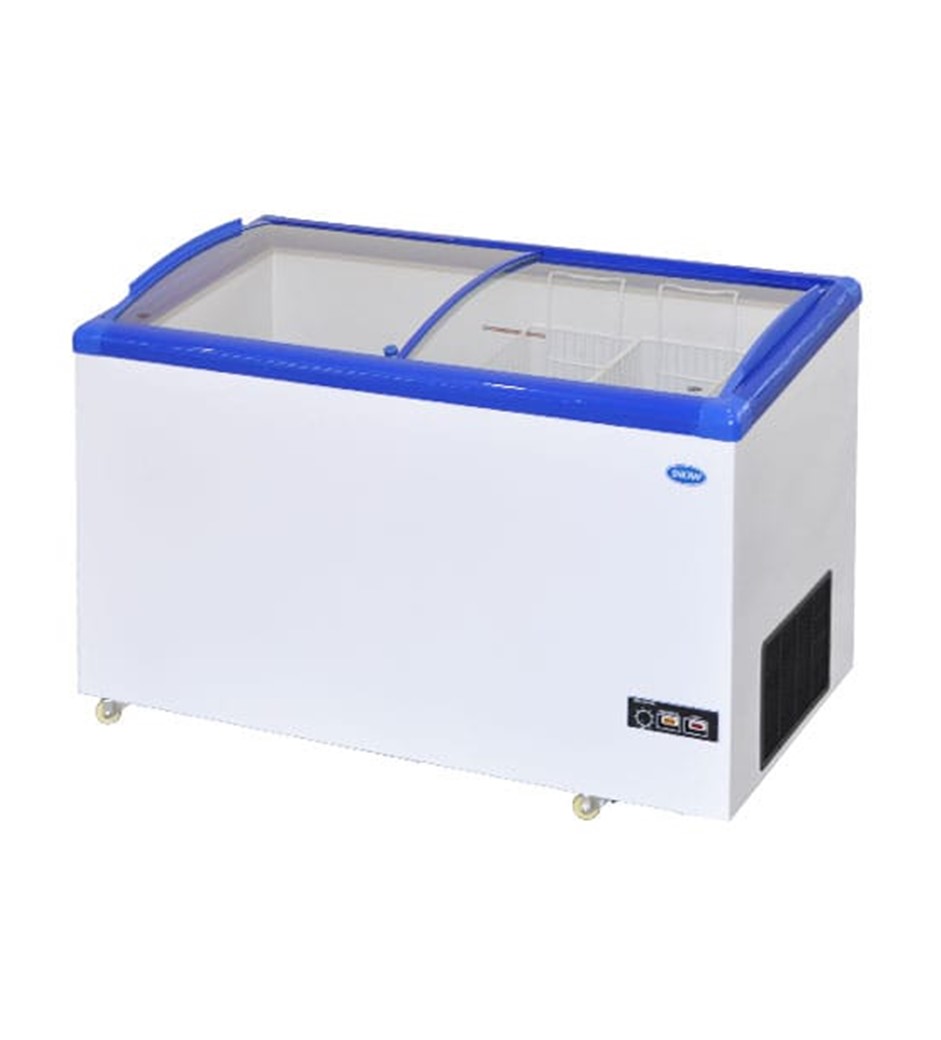

(SC Series) Chest Freezer

Outer Panel & Interior cabinet
• Mild Steel and Galvanized steel Sheet with epoxy powder coating
Evaporator & Condenser
• Zink coated buddy tube
Insulation
• Polyurethane foam, 60mm thick (CFC free) 38mm thick for cooler
Refrigerant
• R 134a (CFC free)
Power Source
• 220-240V, single Phase 50Hz

DescriptionDownload
Model:   250 SC
  • Total Capacity: 205 liter
  • Effective Capacity:  175 liter
  • External Dimension:  827(W) x 623(D) x 895(H) x 825(H1) mm
  • Internal Dimension:   695(W) x 491(D) x 723(H) x 666(H1) mm
  • Door Type:  Curve Glass Slanting Lid
  • Input Power:  150 watts
  • Operating Power:  1.3A
  • Power consumption (24h at 30⁰C ambient):  2.8 kwh/24h
  • Temperature range at 30⁰C ambient: ≥-18
  • Compressor Power: 1/5 hp
  • Net / Gross Weight:  48 / 58 kg
Model:   350 SC
  • Total Capacity: 300 liter
  • Effective Capacity:  255 liter
  • External Dimension:  1052(W) x 662(D) x 895(H) x 825(H1) mm
  • Internal Dimension:   920(W) x 530(D) x 723(H) x 666(H1) mm
  • Door Type:  Curve Glass Slanting Lid
  • Input Power:  180 watts
  • Operating Power:  1.6A
  • Power consumption (24h at 30⁰C ambient):  3.7 kwh/24h
  • Temperature range at 30⁰C ambient: ≥-18
  • Compressor Power: 1/4 hp
  • Net / Gross Weight:  59 / 71 kg
Model:   450 SC
  • Total Capacity: 430 liter
  • Effective Capacity:  370 liter
  • External Dimension:  1332(W) x 695(D) x 895(H) x 825(H1) mm
  • Internal Dimension:   1200(W) x 563(D) x 723(H) x 666(H1) mm
  • Door Type:  Curve Glass Slanting Lid
  • Input Power:  190 watts
  • Operating Power:  1.8A
  • Power consumption (24h at 30⁰C ambient):  3.9 kwh/24h
  • Temperature range at 30⁰C ambient: ≥-18
  • Compressor Power: 1/3 hp
  • Net / Gross Weight:  71 / 87 kg

Download PDF:
