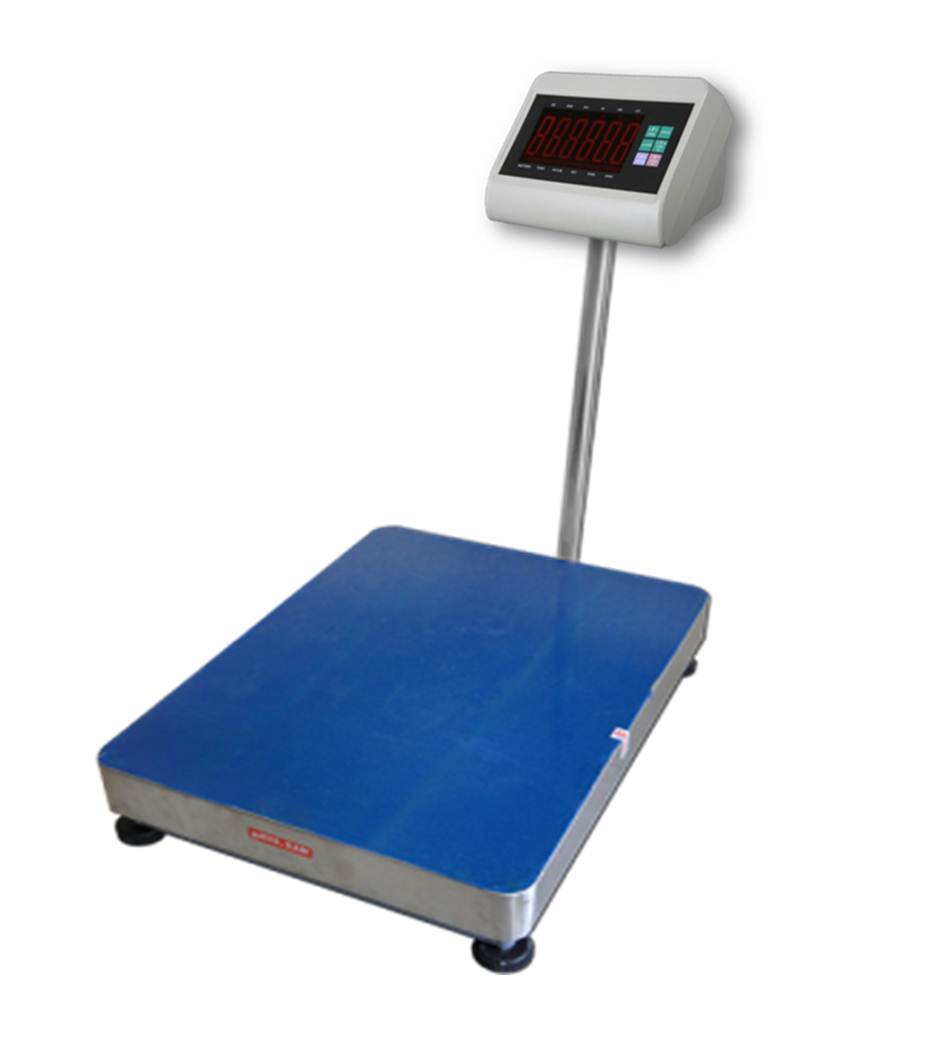

Simona (A27 series) Digital Platform Scale (customized)

Weighing Indicator A27 adopts fast speed , high precision A/D conversion technology, widely applied in electronic platform scale, electronic floor scale , and so on alike static weighing system equipped with 1-4 load cell .

Features :~

  • Low power consumption, provided with different kinds of power saving mode.
  • Optional for RS232 communication with selectable baud rate and scoreboard interface sending by 20mA current loop.
  • Various kind of weighing mode , with easy operation.
  • AC/DC both available, could be recharged during power off

Functions :~

  • Peak hold function
  • Animal weighing function
  • Kg/lb switch function
  • High-ok-low function
  • Weight accumulate, accumulate display, accumulate clear function
  • ZERO trucking range, ZERO setting (switch on / manually) range, speed rate of zero setting could be set separately.
  • Battery indication and alarm for low battery protection.

Optional :~

  • RS232 Interface
  • Receipt Printer
  • Label Printer
DescriptionDownload
Model: A27-30
  • Capacity:  30kg
  • Division:    10g
  • Platform size(mm):   600 x 600
  Model:   A27 -150
  • Capacity: 150kg
  • Division: 20g
  • Platform size(mm):   400 x 500
  Model:   A27 -300
  • Capacity:  300kg
  • Division: 50g
  • Platform size(mm):   450 x 600
  Model: A27-500
  • Capacity:  30kg
  • Division:    100g
  • Platform size(mm):   600 x 600
  Model:   A27 -600
  • Capacity: 150kg
  • Division: 100g
  • Platform size(mm):   600 x 800
  Model:   A27 -1000
  • Capacity:  300kg
  • Division: 200g
  • Platform size(mm):   700 x 800
