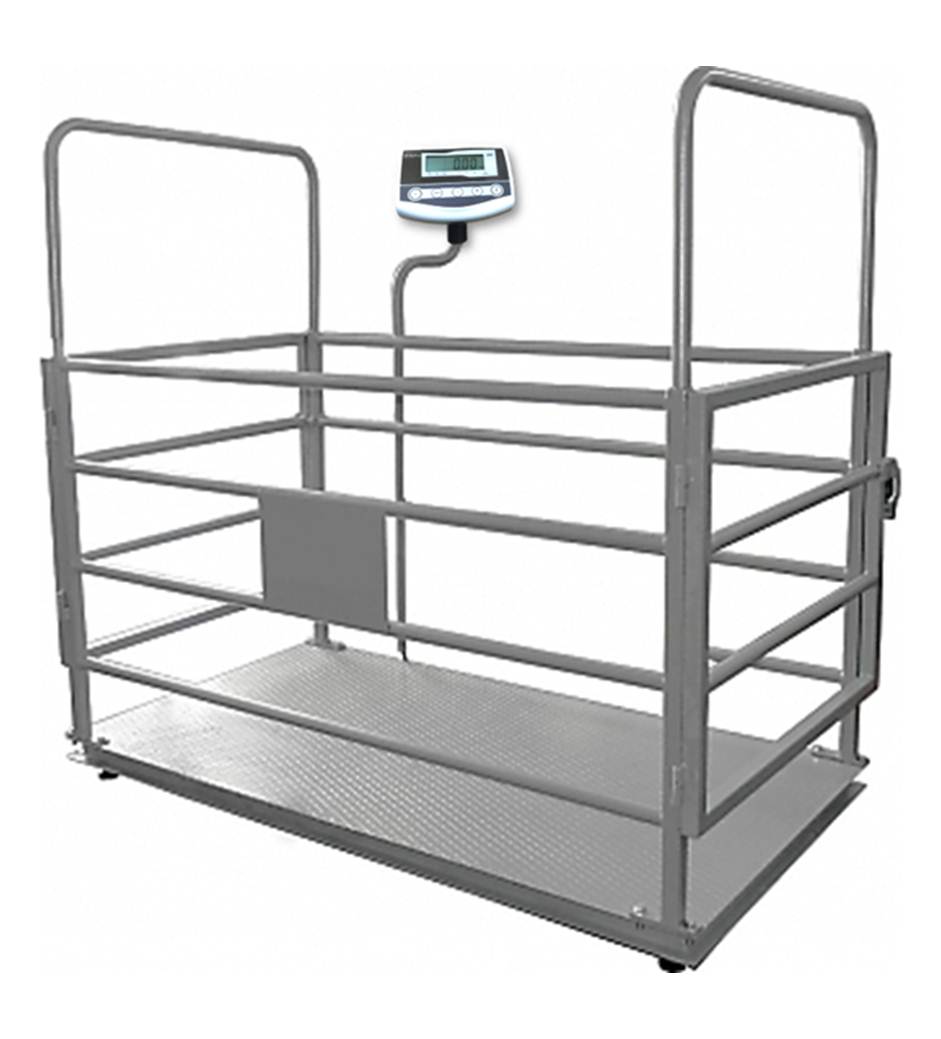

Simona (AEW) Digital Live Animal Scale

Mono block is a weighing system that is used in livestock scales, especially Bass Farms, Courses, Associations etc., with a baklava sliced ​​sheet metal top, portable cage, (indicator) option with four capacity CRCs.

AEW series of high-precision analog-digital conversion technology and special software anti-vibration technology, AC and DC, suitable for electronic scales, electronic platform scales such as the use of 1 to 4 sensors static weighing system. The internal rechargeable battery can be used for an average of 90 - 100 hours.

Power Source:-
Input: AC 120 ~ 240V
Output: DC 10V/600mA

Power Consumption:-

  • Main System: Approx. 18mA
  • Main System with Back light: Approx. 32mA
  • Main System with Back light and RS 232: Approx. 48 mA
  • The internal rechargeable battery can be used for an average of 90 - 100 hours.
  • Easy-to-read LCD display.
  • Can see the sum of the weighing's made
  • Tare, zeroing feature
  • Sound warning between two weights
  • He can get tare on top.
DescriptionDownload
Model: AEW-1.5LA
  • Capacity: 1.5tons
  • Division: 100g
  • Platform Size: 3ft x 5ft
  Model: AEW-2LA
  • Capacity: 2tons
  • Division: 100g
  • Platform Size: 3ft x 5ft


Download PDF:
